![Vmc650 4 Axis 5 Axis CNC Vertical Machining Center CNC Milling Machine](/uploads/s/09fe98306ade4c6fb4dba367e1e6204b.webp)

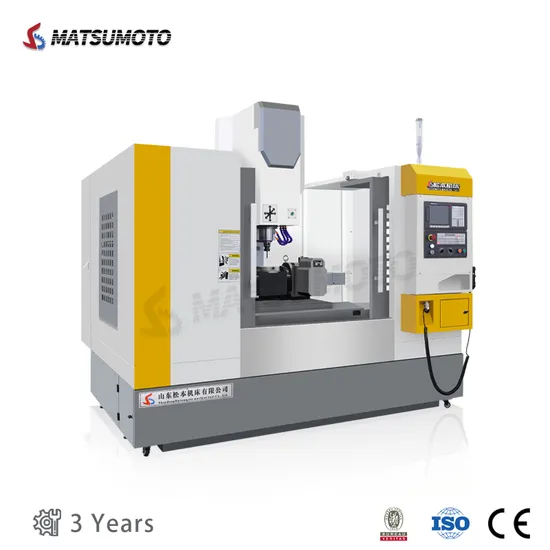

Vmc650 4 Axis 5 Axis CNC Vertical Machining Center CNC Milling Machine
Overview VMC650 4 Axis 5 Axis CNC Vertical Machining Center CNC Milling Machine Product Description The VMC650 vertical
Send your inquiryDESCRIPTION
OverviewBasic Info.
Model NO. | VMC650 |
Performance Classification | High-End CNC Machine Tools |
Certification | GS, CE, RoHS, ISO 9001 |
Condition | New |
Product Name | 3-Axis Vertical CNC Machining Center |
Processing | Maching Center |
Tool Changer Type | Disc Type |
Spindle Taper | Bt40 |
Max. Tool Length | 250/350 mm |
Control System | Siemens GSK Fanuc (Optional) |
Machine Type | Vertical Machine Centers |
Model No. | Vmc650 |
Controlling Mode | CNC |
Max.Spindle Speed | 8000 R/Min |
Table Size | 900X400 |
Transport Package | Free Fumigation Plywood Packaging Steel Base |
Specification | 2300*2200*2400mm |
Trademark | BORUI |
Origin | Shan Dong |
HS Code | 8457101000 |
Production Capacity | 500 |
Product Description
VMC650 4 Axis 5 Axis CNC Vertical Machining Center CNC Milling MachineProduct Description
The VMC650 vertical machining center consists of main engine, CNC system, electrical control system, automatic lubricating system, cooling system, totally enclosed protective cover, automatic chip removal device (optional) etc.The machine has the X, Y, Z three axis linkage, in a clamping can finish milling, drilling, boring, expanding continuously, hinge, such as the internal and external screw thread processing a variety of rough and finish machining process, is suitable for processing all kinds of high precision, working procedure, shape more complex parts, to provide users with complex parts processing and quick, perfect integration solutions.
The machining center/milling of feed shaft for X, Y, Z three coordinate control, three axis through the servo motor drive, can achieve for a variety of plate, plate and shell, a complex parts, such as CAM, mold clamping, complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties, small batch parts production, for complex, high precision parts processing and more shows its superiority.The main specification :
specifications | unit | VMC550 | VMC650 | VMC850 |
Table size | mm | 700X350 | 900x400 | 1050*500 |
Table maximum load | kg | 300 | 450 | 600 |
X/Y/Z axis travel | mm | 550X350X500 | 650x400x500 | 800*500*550 |
Distance between spindle center and column surface | mm | 419 | 476 | 550 |
Distance between spindle end face and worktable surface | mm | 100-600 | 100-600 | 105-655 |
X/Y/Z max. feed speed | mm/min | 10000 | 10000 | 10000 |
X/Y/Z max.rapid traverse | m/min | 20/20/15 | 24/24/20 | 20/20/15 |
Max. spindle speed | r/min | 8000 | 8000 | 8000 |
Spindle taper | BT40 | BT40 | BT40 | |
Spindle motor | kw | 3.7/5.5 | 5.5/7.5 | 7.5/11 |
X/Y/Z axis servo motor | kw | 1.0/1.0/1.5 | 1.0/1.0/1.5 | 2.0/2.0/2.0 |
X/Y/Z motor connection | direct | direct | direct | |
X/Y/Z guide rail form | Hard guide rail | 2 axis linear guide rail ,1 axis hard rail | Hard rail | |
T slot(number-width-pitch) | 3-18-105 | 3-18-125 | 5-18-90 | |
Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |
Tools type | Armless/arm | Armless/arm | Armless/arm | |
Tool magazine capacity | Armless:12/arm:16 | Armless:16/arm:16 | Armless:16/arm:24 | |
Max.tool weight | kg | 7 | 7 | 8 |
Max. tool length | mm | 250/350 | 250/350 | 250/350 |
Electric capacity | KVA | 8 | 10 | 11 |
Machine dimension | mm | 2380X1950X2300 | 2300x2200x2400 | 2880x2450x2700 |
1. Adopting the world advanced numerical control system, the M60S series are servo-driven, ensuring the stability of the control system is high, the speed is fast, and the surface is smooth.
The advantages of high precision, the ability to make moulds, is the best choice for mold production.
2. All M60S series controllers are marked with RISC64 bit CPU.
3. Coordinate display value conversion can be freely switched (program value display or manual insertion quantity display switching)
4. Standard internal carrier profile function, working position coordinates and central point measurement functions.
5. Buffer correction function extension: can correspond to IC card/computer link B/DNC/MDI mode.
6. Edit the edit mode in the edit screen, and switch to edit or edit the whole page.7. Graphical display function improvement: can contain the prop path information to fully display the work coordinates and the actual location of the props compensation.
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) We want to know:1.What's your Industrial Voltage? 2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model! 3.If need CIF Price, please kindly tell us the port of destination.
Related Products
-

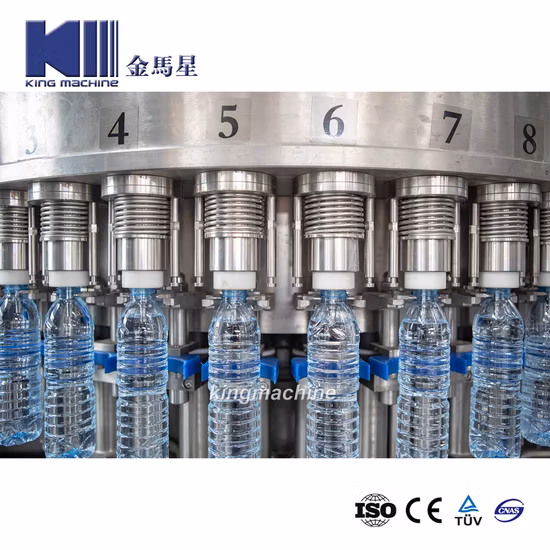

Full Automatic Beverage Liquid Pure Mineral Drinking Soda Water Bottle Blowing Washing Filling Bottling Bottled Capping Sealing Labeling Making Packing Machine
-

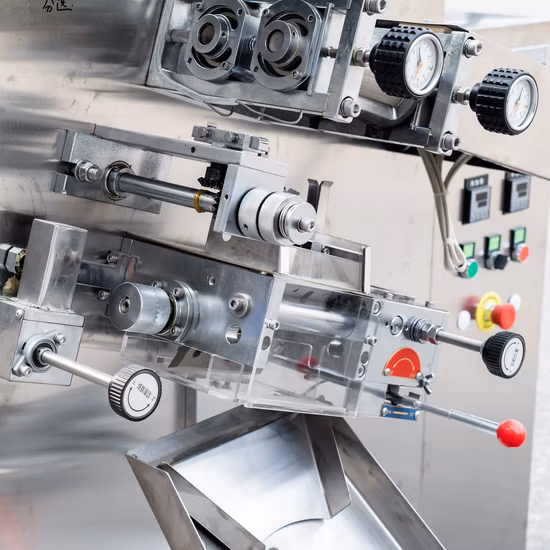

Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine
-
Automatic Granule Dry Fruit Nut Bean Seed Dried Leaves Sugar Chocolate Potato Chip Popcorn Snack Food Vffs Vertical Packing Packaging Machine
-

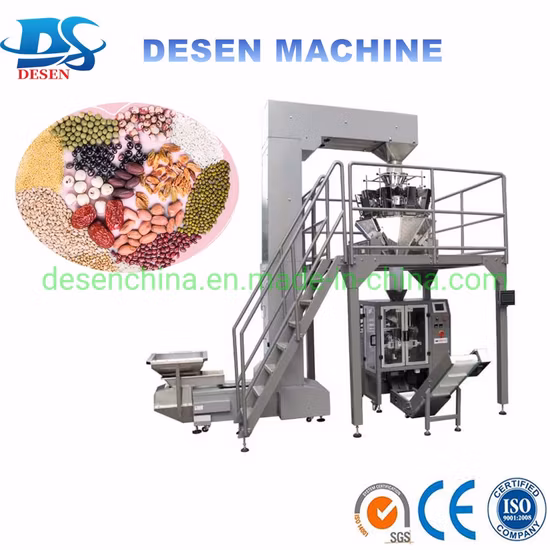

Automatic Baby Powder Packaging Machine/Vffs Vertical Baggers Machine
